Spindle Repair 101

Understanding Reasons for Spindle Failure

Jump to:
Where Spindle Damage Occurs Most Common Air Bearing Failure Components Reasons for Single Component Failure Reasons for Air Bearing Spindle Failures in General

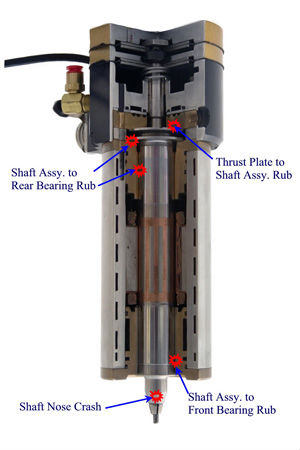

Where Spindle Damage Occurs

Links
Place a Parts Order Service Contacts Back to top
Where Spindle Damage Occurs

Most Common Air Bearing Failure Components

Links
Service Contacts Back to top
Most Common Air Bearing Failure Components

Reasons for Single Component Failure

Links
Rear Journal Bearing Rub Rear Lift Bearing Rub Front Journal Bearing Rub Thrust Bearing & Shaft Assembly Rub Back to top
Rear Journal Bearing Rub

This failure mode is most often caused by clogged air ports. It may also be caused by an unbalanced shaft.

For Routers, aggressive routing speeds or clogged bits will contribute to this failure as mode. The air pressure to keep the air bearings “stiff” must be at least 80 PSI at the input to the spindle. Using collets that are not specifically designed for the spindle will cause high speed unbalanced condition.

Reasons for Single Component Failure - Rear Journal Bearing Rub

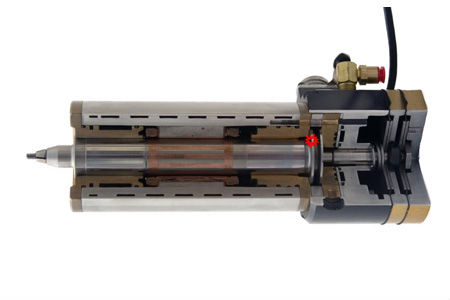

Rear Lift Bearing Rub
Reasons for Single Component Failure - Rear Lift Bearing Rub

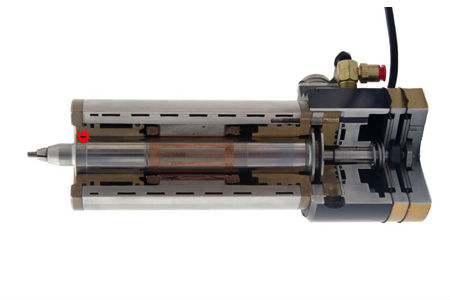

Front Journal Bearing Rub

This failure mode is most often caused by improper vacuum flow or lift. Vacuum lift should be 20-25” water. Polished (”rebuilt”) front bearings will not have the correct air gap. For routers, routing too fast overpowers the bearing. The air pressure to keep the bearings “still” must be at least 80 PSI at the input to the spindle.

Reasons for Single Component Failure - Front Journal Bearing Rub

Thrust Bearing and Shaft Assembly Rub

This failure is typically caused by Chip Loads that are too aggressive, or by normal chip loads with large tools that are dull. This may also be caused by hitting or drilling tooling pins/clamps. The air pressure to keep the bearings “stiff” must be at least 80 PSI at the input to the spindle. Improperly balanced shafts will also cause this condition. Using collets that are not specifically designed for the spindle will cause high speed unbalanced condition.

Reasons for Single Component Failure - Thrust Bearing & Shaft Assy. Rub

Reasons for Air Bearing Spindle Failures in General

Links
Service Contacts Back to top

Air bearings are between .00015” to .0004” wide. The air pressure to keep the bearings “stiff” must be at least 80 PSI at the input to the spindle. Air pressure not to exceed 90 PSI.

Maintain the cooling system. Overheating a spindle causes the metal to expand, suffocating air bearing gaps.

Reasons for Air Bearing Spindle Failures in General
